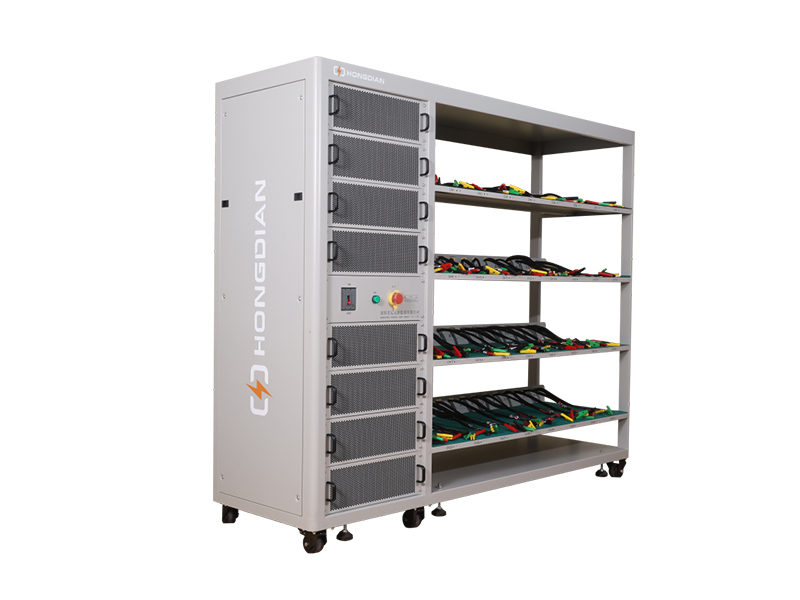

32/48 umuyoboro wa bateri kwishyuza no gusohora ikizamini cyinjijwemo akabati
ibicuruzwa birambuye
Byakoreshwa cyane mu nganda-zirimo ibinyabiziga by'amashanyarazi (EV), kubika ingufu zishobora kongera ingufu, ibikoresho bya elegitoroniki bigendanwa, hamwe n’ikirere - iyi sisitemu iha imbaraga abakoresha kugabanya ibiciro no kuzamura umusaruro binyuze mu kugerageza icyarimwe icyarimwe, kugabanya igihe cyo gukora. Hamwe nigiciro kidasanzwe-cyiza, kiruta ibisubizo gakondo muguhuza neza neza, ubunini, hamwe ningufu zingirakamaro, bigatuma ROI yihuta.
Ikigereranyo cya tekiniki
32CH ihuriweho n'ibipimo by'inama y'abaminisitiri
Umuvuduko | Icyitegererezo | Voultane | Ntarengwa | Ntarengwa |
| Igitekerezo | Imbaraga | ingano |
60V | HD-60V30A-32CH | 0.05% FS | 30mA | 6V | 20ms | 90% | 57.6KW | W: 2130mm |
75V | HD-75V30A-32CH | 0.05% FS | 30mA | 6V | 20ms | 90% | 72KW | |
100V | HD-100V30A-32CH | 0.05% FS | 30mA | 6V | 20ms | 90% | 96KW |
48CH ihuriweho n'ibipimo by'inama y'abaminisitiri
Umuvuduko | Icyitegererezo | Umuvuduko | Ntarengwa | Ntarengwa |
| Igitekerezo | Imbaraga | ingano |
30V | HD-30V10A-48CH | 0.05% FS | 30mA | 6V | 20ms | 90% | 14.4KW | W: 2130mm |
HD-30V20A-48CH | 0.05% FS | 30mA | 6V | 20ms | 90% | 28.8KW | ||
HD-30V30A-48CH | 0.05% FS | 30mA | 6V | 20ms | 90% | 43.2KW | ||
60V | HD-60V10A-48CH | 0.05% FS | 30mA | 6V | 20ms | 90% | 28.8KW | |
HD-60V20A-48CH | 0.05% FS | 30mA | 6V | 20ms | 90% | 57.6KW | ||
75V | HD-75V10A-48CH | 0.05% FS | 30mA | 6V | 20ms | 90% | 36KW | |
HD-75V20A-48CH | 0.05% FS | 30mA | 6V | 20ms | 90% | 72KW | ||
100V | HD-100V10A-48CH | 0.05% FS | 30mA | 6V | 20ms | 90% | 48KW | |
HD-100V20A-48CH | 0.05% FS | 30mA | 6V | 20ms | 90% | 96KW |
Ibipimo byinjiza AC | |||
Ongera amashanyarazi | AC 380V ± 10% 50/60 ± 5Hz | Kwinjiza inzitizi | ≥1MΩ |
Impamvu zingufu | ≥99%（Umutwaro wuzuye） | Gutanga ibitekerezo neza （INGINGO） | ≥90%（Umutwaro wuzuye） |
THDI | ≤5%（Umutwaro wuzuye） | ||
Ibisohoka DC | |||
voltage neza | ± 0,05% FS | Amashanyarazi neza | ± 0,05% FS |
Umuyoboro wa voltage | 1mV | Icyemezo cya none | 1mA |
Igihe cyo gusubiza | 10ms（10% FS ～ 90% FS) | Ubwoko bw'umuyoboro w'abafasha | NTC |
Kwishyuza no gusohora igihe cyo guhindura | 20ms（-90% FS ～ 90% FS） | Uburyo bwo kugenzura imiyoboro | Imiyoboro yose irashobora kugenzurwa mu bwigenge |
Ibiranga imikorere yintambwe | |||
Igihe ntarengwa cyo gufata amakuru | 10ms | Inomero yumuzingi | 65535 |
Umubare w'intambwe z'akazi | 2000 | Gutera icyari | 5 |
Shyigikira igeragezwa | Ikizamini cyubuzima bwa Batteri test Ikizamini cyubushobozi bwa bateri charge Ikigereranyo cya bateri / gusohora ikizamini kiranga test Kwishyuza amafaranga yo kugumana ipaki ya batiri 、 Kwishyuza no gusohora neza ikizamini cya paki ya batiri 、 Kwishyuza no gusohora neza ikizamini cya batiri | ||
Uburyo bwo kwishyuza no gusohora | Guhagarara, guhagarara, guhora kwishyuza CC, guhora wishyuza CV, guhora wishyuza CR, guhora amashanyarazi hamwe na voltage yamashanyarazi CCCV, guhora amashanyarazi yamashanyarazi, guhora asohora amashanyarazi DC, guhora asohora amashanyarazi DP, guhora arwanya DR, DC Imbere Kurwanya Imbere (DCIR) | ||
Imiterere yo guhagarikwa | Umuvuduko, ubungubu, ubushobozi, ingufu, igihe, imbaraga, umubare wizunguruka, ibipimo bya BMS, ibipimo byambere byateye imbere (shyigikira logique imwe cyangwa nyinshi kandi cyangwa guhuza) | ||
Ubwoko bwibikorwa | Simbuka, hagarara, urinde, Ibikurikira | ||
485 / DBC Idosiye yatumijwe | Shyigikira guhindura dosiye, kubika, no gutumiza mu mahanga | ||
DC Ikizamini cyo Kurwanya Imbere (DCIR) | InkungaDCIRintambwe yintambwe, ibyuma byukuri-imecalculation, inkunga ya twokindsoftesting | ||
Uburyo bwo kohereza amakuru | Kohereza hanze muburyo bwa Excel cyangwa CSV | ||
Igikorwa cyo kurinda | |||
Kurinda AC kuruhande | Powergridvoltage hejuru / munsi ya 、 voltageprotection, surge 、 kurinda, kurinda ikirwa, hejuru no kurinda inshuro nyinshi, ibyuma birengera ubushyuhe, kwirinda-kwimenyekanisha, nibindi | ||
Kurinda uruhande rwa DC | munsi yo kurinda voltage, ibyuma birengera ubushyuhe, umurongo wa bateri umurongo uhuza kurinda | ||
Uruhande rwa bateri rwuzuye | Kurinda hejuru no hasi kurinda ingufu za bateri zose, kurinda hejuru no hepfo kurinda ingufu za bateri, hejuru no hepfo kurinda ubushyuhe bwa bateri, hejuru yumupaka no hasi kurinda umuriro wa batiri no gusohora amashanyarazi, hejuru no hepfo kurinda ubushobozi bwa bateri, kurinda itumanaho rya BMS, kurinda imiyoboro, nibindi. | ||
Kurinda ingufu zo kurinda amakuru | Hamwe na power power yibikorwa byo kurinda, irashobora kwirinda neza gutakaza amakuru yatewe namashanyarazi cyangwa irashobora gukomeza gukorera ahagarara aho idahinduye inzira nyuma yo guhamagarwa | ||
Icyiciro cyo kurinda | IP20 | Uburyo bukonje | Gukonjesha ikirere ku gahato |
igipimo cy'ubushyuhe | 0 ℃ -45 ℃ | urusaku | ≤80dB |
Imikorere y'Ikizamini Cyingenzi
Ikizamini cyubuzima
Ikizamini cyubushobozi
Kwishyuza gusohora ibiranga ikizamini
DC ikizamini cyo kurwanya imbere
Amafaranga arenze / Ikizamini cyo gusohora
Ikizamini cya gatatu cyo guhuza
Ikizamini kiranga ubushyuhe
CAN / RS485 itumanaho
Urubuga rwo gukoresha abakiriya
Ibiranga ibicuruzwa

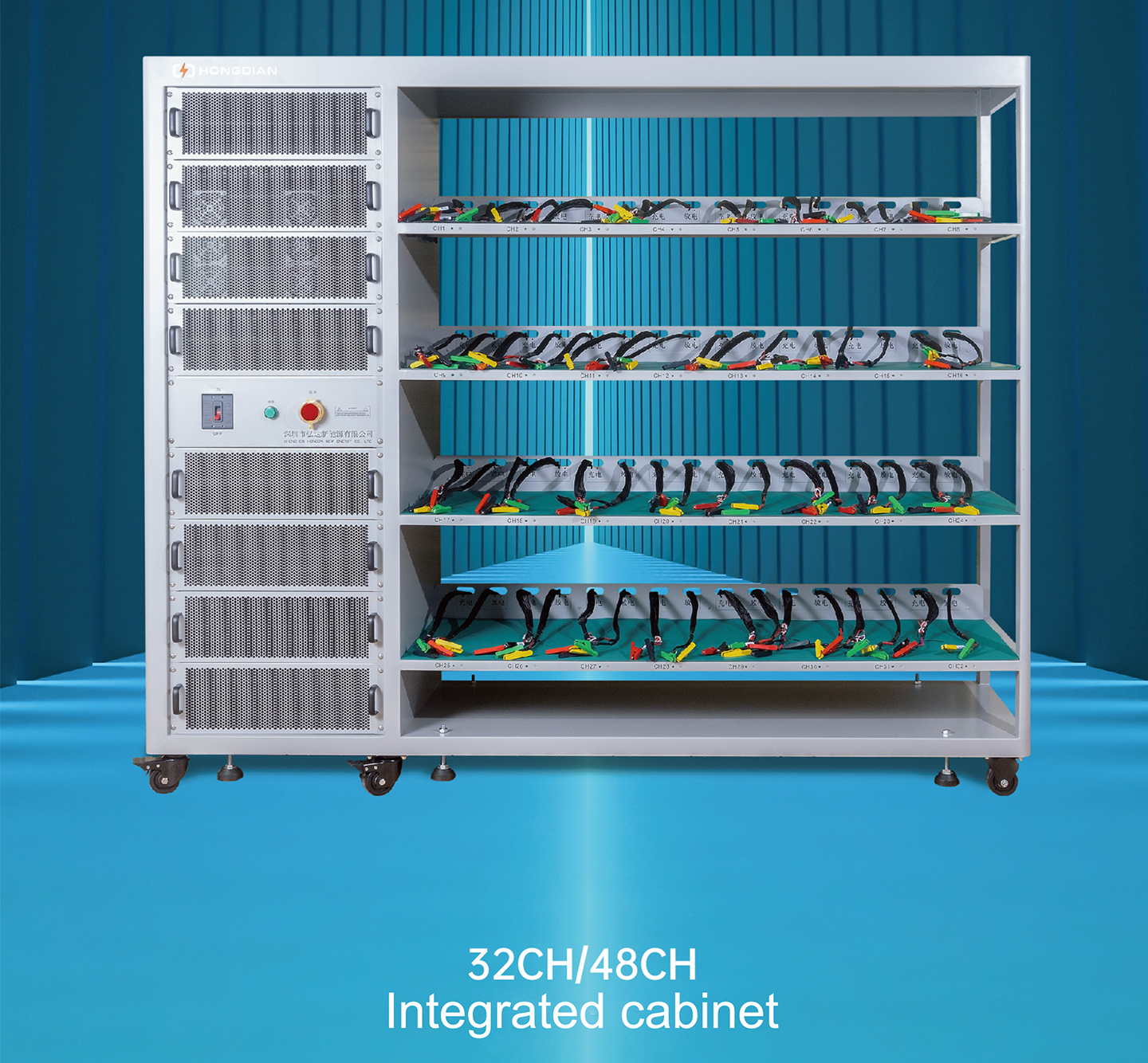

Kwemeza igishushanyo mbonera cya mashini 32 / 48CH yose
• Umuyoboro umwe urashobora kugenzurwa wigenga.
• Kwemeza igishushanyo mbonera, inama yuzuye ni 32 / 48CH.
• Irashobora gukoreshwa muburyo bukenewe mukuzamura byoroshye no kwaguka.
• Imikorere ihamye no kuyitaho byoroshye.
• Kwishyira hamwe, kugabanya ibiciro byo gukoresha insinga
• Ingufu zo gutanga ibitekerezo neza> 90%
• Bus ya DC ishyigikira guhindura ingufu hagati yimiyoboro
• Hifashishijwe ibikorwa byo gutanga ibitekerezo, ingufu zagaruwe mu gusohora bateri zirashobora gukoreshwa mu kwishyuza mu zindi nzira, zishobora kuzigama cyane gukoresha ingufu no kugabanya amafaranga yo gukora.

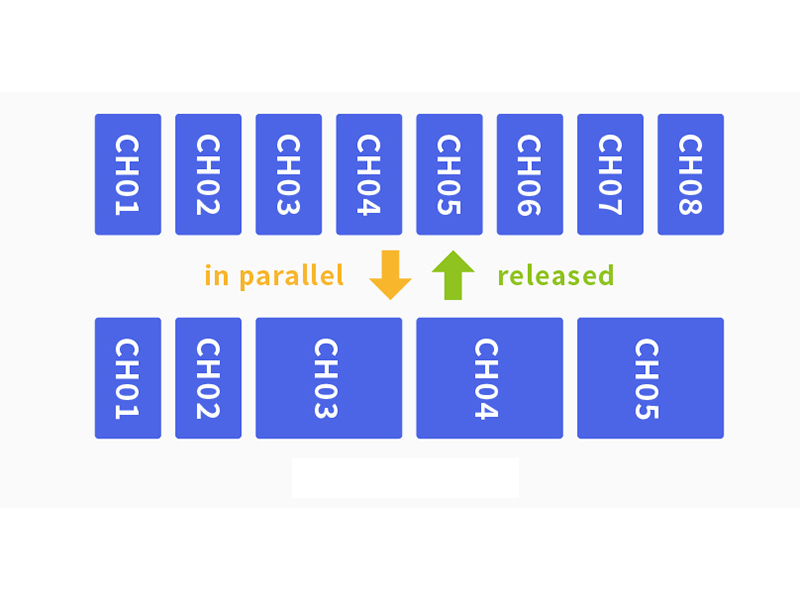

Igishushanyo mbonera gishyigikira guhuza imiyoboro
Imiyoboro myinshi ihuriweho irashobora kongera porogaramu igezweho, bigatuma igikoresho gishobora kwipimisha imiyoboro myinshi hamwe no kugerageza kwinshi, kandi birashobora gukoreshwa muburyo bwagutse bwibintu byageragejwe.
Ibisobanuro bihanitse, igisubizo cyihuse
Imiyoboro myinshi ihuriweho irashobora kongera porogaramu igezweho, bigatuma igikoresho gishobora kwipimisha imiyoboro myinshi hamwe no kugerageza kwinshi, kandi birashobora gukoreshwa muburyo bwagutse bwibintu byageragejwe.
✔ Umuvuduko / ibipimo bipima neza: ± 0.05% FS
Out Umuvuduko w'amashanyarazi urwego: 6-100V, gupima ibipimo 1mV.
Output Ibisohoka muri iki gihe: ± 30A, gukemura ibipimo 1mA.
Time Igihe cyo gusubiza muri iki gihe (10% ~ 90% FS): Kwishyuza igihe cyo guhinduranya igihe (+ 90% ~ -90% FS):
Igikorwa cyuzuye cyo kurinda
Igikorwa cyo kwipimisha gifite umutekano kandi amakuru yumutekano arahangayitse
Protection Kurinda ibyuma: Kurenza urugero / Kurengana / Kurinda imbaraga Zirenze, Kurinda Umuyoboro Mugufi, Kurinda Amashanyarazi, Kurinda Ubushyuhe, Kurinda / Kurinda Amashanyarazi, Kurinda AC Guhuza Kwihuza
Protection Kurinda porogaramu: kurenza urugero / kurinda birenze urugero, kurinda ubushobozi, gukomeza amashanyarazi, hejuru yubushyuhe, kurinda ibintu bidasanzwe, kurinda voltage, kurinda bidasanzwe
Ibyiza byacu
Sisitemu Yambere yo Kugerageza Bateri
Yashizweho kuri bateri yuzuye neza R&D no kwemeza ubuziranenge, igisubizo cyambere cyo kugerageza gisobanura neza imikorere hamwe ninganda ziyobora inganda:
Urutonde rudahuye
Porogaramu ishingiye kuri PC ishyigikira, 0002,000 intambwe yo kwipimisha ishobora kugerwaho kandi igera kuri 65.535 yogusubiramo, bigafasha protocole yigihe kirekire.
Igenzura ryubwenge
Urwego-5 rwubatswe rwubatswe rwemerera ibizamini bigoye, guhuza nibisabwa bitandukanye byo kugerageza.
Kwerekana amakuru yuzuye
Igihe nyacyo-cyinshi-cyerekanwe gikurikirana ibipimo 10+ icyarimwe (voltage, ikigezweho, ubushyuhe, nibindi) hamwe nibisobanuro bya axis iboneza hamwe no kugereranya.
Umukoresha-Hagati
Kurura-no-guta umurongo gutandukanya ibintu byose bifasha guhuza amashusho, mugihe ibyoherejwe-biteguye gushushanya bishyigikira raporo yubumenyi.
Nibyiza kubipaki ya batiri ya EV, sisitemu yo kubika ingufu, hamwe no gupima ibikoresho bya elegitoroniki, Ihuza ibipimo ngenderwaho bya CE hamwe na software itangiza, itanga ibyiciro bya laboratoire ya R&D binyuze mubyiciro byinshi byo gukora.
